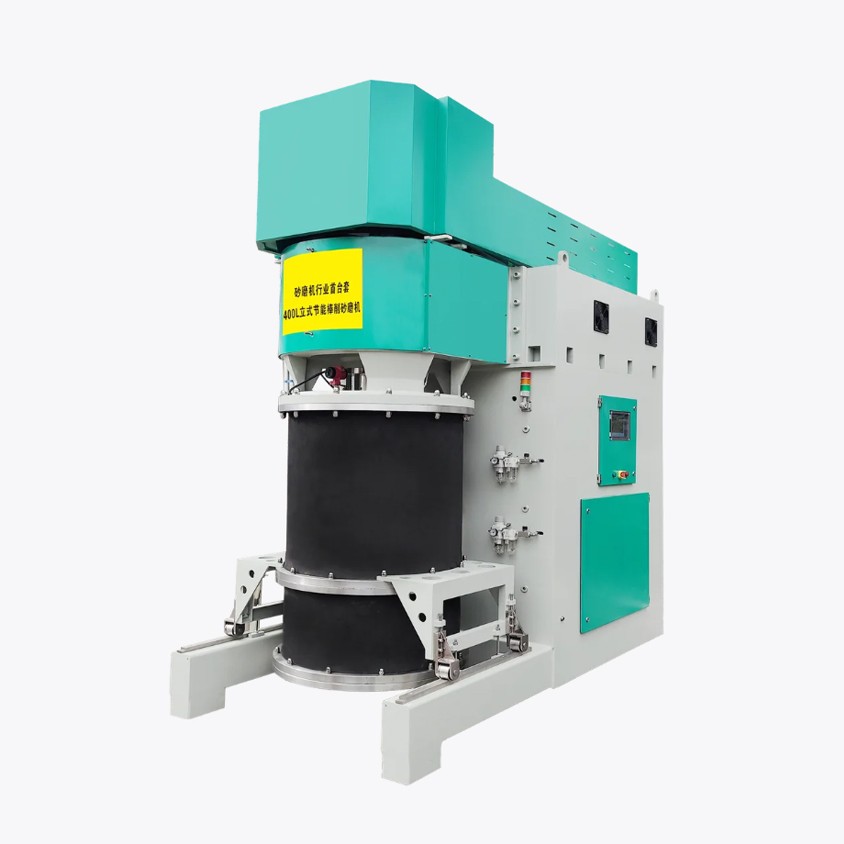

LPM Vertical Bead Mill Series

Introduction: Screen-free vertical sand mills for 0.05-0.3 mm micro-media, ultra-fine grinding with no clogging and high throughput.
Application:
Material: Nanomaterials
Sodium materials
Silicon-carbon anode
Lithium iron phosphate
Ink
Alumina
Zirconia
Silica
ATO / ITO
Graphene

Specially designed and optimized for reliable use of 0.05-0.3 mm micro grinding beads, the LPM series combines an innovative screen-free separation system with special functional components to deliver extremely high throughput and a perfect, never-clogging separation system.




ModelLPM-60LPM-150LPM-400LPM-1000
Motor Power (kW)90160355650
Grinding Chamber Volume (L)601504001000
Grinding Media (mm)0.05-2.00.05-2.00.05-2.00.1-2.0
Feed Flow (L/h)2000400060008000
Cooling Water Consumption (m³/h)461018
Weight (kg)45007500950022000
