| Introduction: | Pin-rod ceramic sand mills for high-flow, high-efficiency nano grinding across the full range of nano-material industries. |
| Application: | |
| Material: | Lithium iron phosphate Lithium manganese iron phosphate Carbon black Carbon nanotubes Graphene composite slurry Separator coating slurry Battery coating Silicon-carbon |

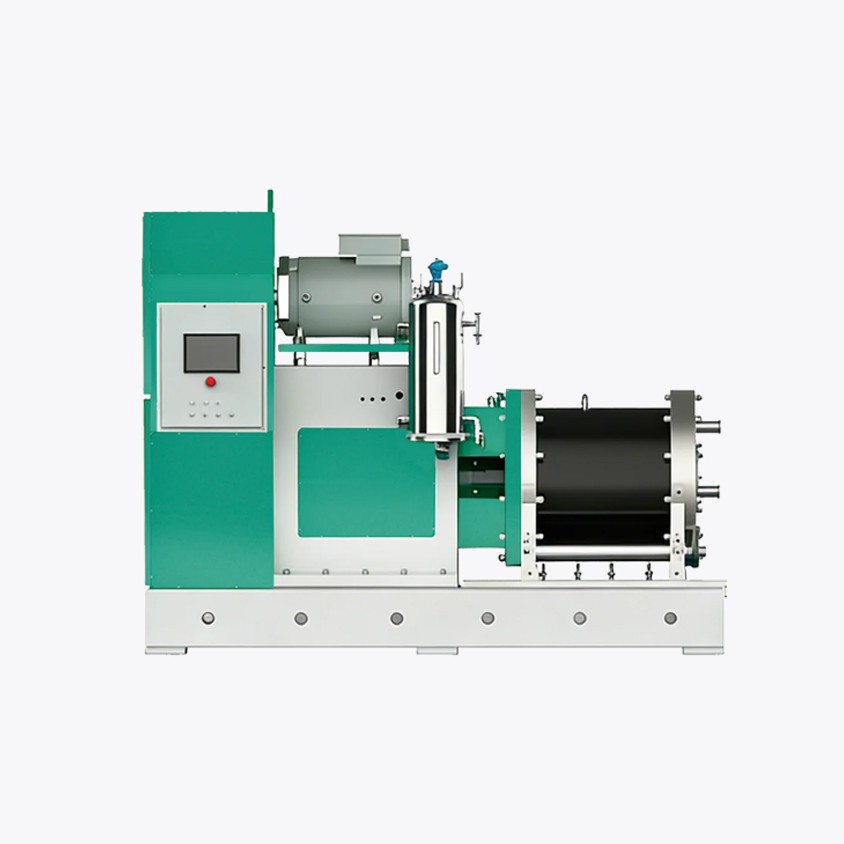

The NCP series pin-rod nano sand mill is proven across the nano-materials industry, recognized for its large flow rate and outstanding grinding efficiency. Its pin-rod disperser and silicon carbide inner chamber deliver narrow distribution with low energy consumption.
| Model | NCP-6 | NCP-15 | NCP-30 | NCP-60 | NCP-150 | NCP-300 | NCP-400 | NCP-1000 |
| Motor Power (kW) | 11 | 22 | 45 | 90 | 132-160 | 315-355 | 315-355 | 650 |
| Grinding Chamber Volume (L) | 6 | 15 | 30 | 60 | 150 | 300 | 400 | 1000 |
| Grinding Media (mm) | 0.2-2.0 | 0.2-2.0 | 0.2-2.0 | 0.2-2.0 | 0.2-2.0 | 0.2-2.0 | 0.2-2.0 | 0.2-2.0 |
| Feed Flow (L/h) | 300 | 800 | 1200 | 3000 | 4000 | 5000 | 6000 | 12000 |
| Weight (kg) | 800 | 2500 | 2800 | 4500 | 6500 | 8000 | 9500 | 11000 |
