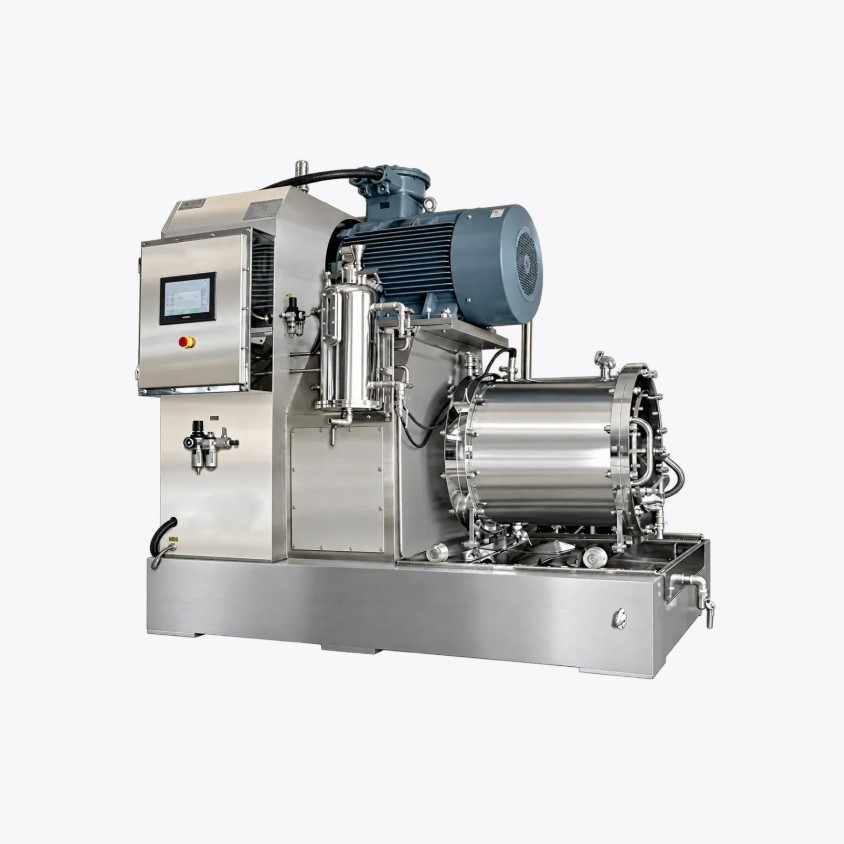

Carbon Nanotube Conductive Paste Bead Mill Series

Introduction:	Specialized sand mills for carbon nanotube slurry with corrosion-proof stainless structure, high flow and anti-explosion treatment.
Application:
Material:

Details
Application
Parameter
Characteristic

Purpose-built for carbon nanotube conductive paste, this series features a full stainless-steel exterior, a CNT-specific rotor design and anti-explosion anti-crack barrel treatment for safe, efficient, high-flow production.

Model	NCT-15	NCT-30	NCT-90	NCT-150
‌Motor Power (kW)‌	22	45	90	132-160
‌Grinding Chamber Volume (L)‌	15	30	90	150
‌Min. Production Volume (L)‌	25	50	150	300
‌Cooling Water Consumption (m³/h)‌	1-2	2-3	3-6	5-8
‌Dispersed Shaft Speed (r/min)‌	0-1200	0-1200	0-750	0-400
‌Weight (kg)‌	2500	2800	4500	6500
