| Introduction: | Pilot-scale high-pressure homogenizers from 20 to 300 L/h, bridging laboratory trials and volume production. |
| Application: | |
| Material: | Single-wall carbon nanotubes Graphene Biopharmaceuticals Food processing Cosmetics New materials Dispersion and emulsification Cell disruption |

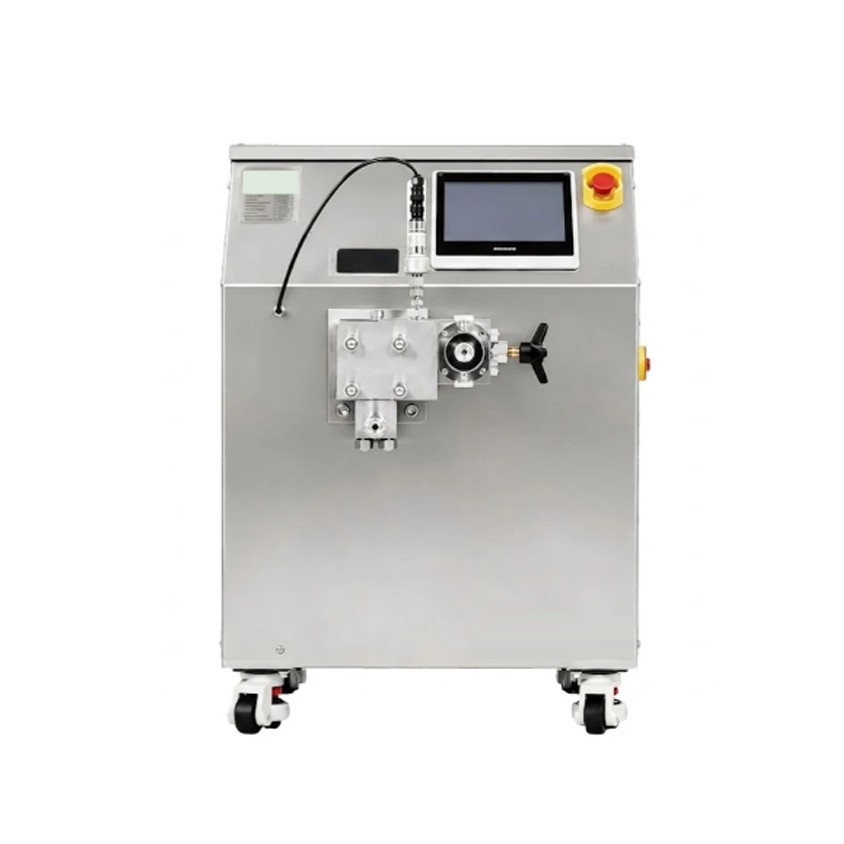

Built for pilot-stage homogenizing, the WH-PILOT runs on a 5.5 kW drive, handles high-viscosity materials and particle-laden systems, and covers 20-40 L/h at up to 1500 bar. The wider series extends to 300 L/h for process scale-up ahead of full production.
| Model | WH-PILOT | WH-PILOT16 | WH-PILOT22 | WH12-150 | WH12-300 |
| Flow Rate (L/h) | 20-40 | 50-60 | 100 | 100-150 | 200-300 |
| Max. Working Pressure (bar) | 1500 | 1000 | 600 | 1500 | 1000 |
| Motor Power (kW) | 5.5 | 5.5 | 5.5 | 11 | 11 |
| Weight (kg) | 240 | 240 | 240 | ||
| Dimensions (mm) | 840×635×920 | 840×635×920 | 840×635×920 |
