| Introduction: | Materials are pulverized by colliding with each other using opposing fluids. The particle size of the product can be superfine pulverized to the level of several microns. |
| Application: | Chemicals, food, medicinal, electronic, electrical, other |
| Material: | Powder material, granular material |

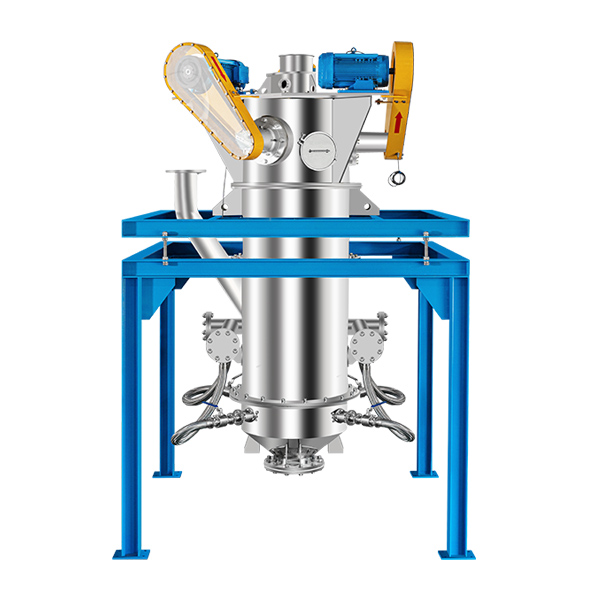

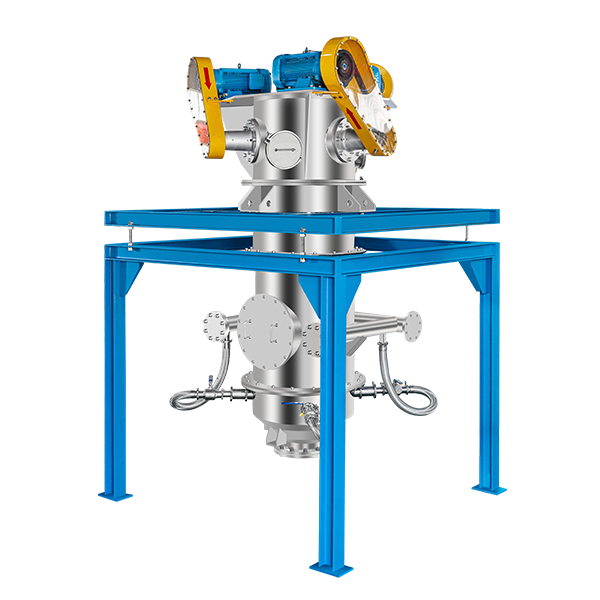

Equipment introduction
Purpose: superfine crushing of raw materials
Model number : XRJ-410 XRJ-640
XRJ-830 XRJ-940
Equipment principle
Materials are smashed by colliding with each other using opposing fluids
The particle size of the product can be ultrafine crushed to a few microns level
Because its structure prevents mechanical wear, the crusher is suitable for use
Large amount of crushed and high wear material
Advantage
The clearance of the grading wheel can be adjusted
Multi-type graded wheelset lightweight material
Such as lithium iron phosphate is particularly effective!
The heat resistance with the traditional jet mill is 60℃
The heat resistance of our high temperature jet mill is 120°C!
Application
Lithium iron phosphate ternary graphite coke capacitor packaging material
Alumina zirconia silicate activated carbon resin glass
Electronic materials conductive materials magnetic materials calcium carbonate tin oxide
Pharmaceutical herbs pesticides health food food additives
Abrasives Crushing and grading of secondary aggregates of pigment metal alloys
| Type number | XRJ-410 | XRJ-640 | XRJ-830 | XRJ-940 |
| Grading wheel size | Ø 200mm | Ø 110mm | Ø 200mm | Ø 315mm |
| Number of grading wheels | 1件 | 4件 | 3件 | 4件 |
| Compressor power | 100kW | 130kW | 250kW | 400kW |
| Number of nozzle | 4件 | 4件 | 3件 | 4件 |
| Air usage | 16㎥ /min | 20㎥ /min | 50㎥ /min | 80㎥ /min |
| Equipment weight | 1,200kg | 1,800kg | 2,700kg | 3,000kg |
Characteristic
New research and development of multi-type classification wheel!
Multi-type graded wheelset lightweight material
Such as lithium iron phosphate is particularly effective!
Through the classification wheel mounted on the top, almost no coarse powder flies to the fine powder side, making the particle size distribution clearer.
Small to 1 micron grading capability allows it to be used as a airflow classifier.
The upper parts can be produced separately.
The clearance of the grading wheel can be adjusted.
Beyond the conventional heat-resistant design!
The heat resistance of traditional jet mill is 60℃.
The heat resistance of our high temperature jet mill is 120°C!
By installing a set of weighing sensors in the main body.
❖Control of supply
❖You can check for residual volume and adhesion
❖The control of the whole system is strengthened and the stable operation is realized
