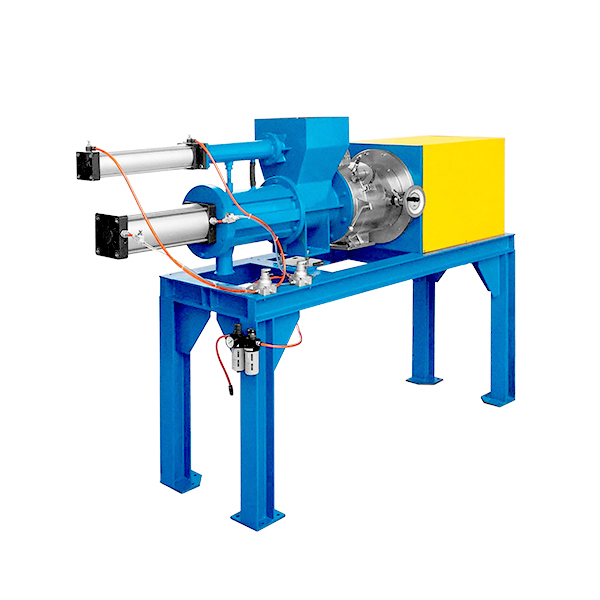

Horizontal colloid mill

Introduction:	Large material into the silo, through the push rod impact into a number of crushing blocks, and then pushed through the cylinder to the crushing chamber.
Application:	Lithium battery anode material coarse crushing, ceramics recycling, catalyst, etc.
Material:	Powder material, granular material

Details
Application
Parameter
Characteristic

Equipment introduction

Large material into the silo, through the push rod impact into a number of crushing blocks, and then pushed through the cylinder to the crushing chamber. The material is crushed by the friction, shear and extrusion caused by the rotation of the grinding disc and the fixing disc. Breaking through the traditional crushing jaw crushing + roller crushing two-in-one equipment.

Grinding effect: through the adjustment of spacing, to achieve different particle sizes.

Characteristic

Shearing, crushing and grinding of various materials

Stone mortar mill with two disks

The raw material is crushed through the clearance of the mill

It is crushed by the impact force, centrifugal force and shear force of the millstone

The gap is controlled by electronic dials from IMAO, Japan

The clearance can also be adjusted when the machine starts

Crushing part is equipped with cooling jacket, water cooling equipment

Injection of dry air or nitrogen can control the dew point

Application

Lithium battery anode material coarse crushing, ceramics recycling, catalyst, etc.

Comminution test data

Raw material	10目以上	10目　　　0.6～0.2mm	30目	50目以下
	＞2mm		0.3～0.6mm	＜0.3mm
Ternary material	0.001	0.102	0.027	0.87
NCA	0.002	0.13	0.118	0.75
Lithium cobaltate	0.002	0.27	0.46	0.268
High nickel material	0.004	0.59	0.21	0.196
Silicous oxide	0.01	0.1	0.24	0.65
Red brick	0.02	0.56	0.36	6.0%

Characteristic

1. The contact places of materials are coated with special coating to completely prevent foreign matter from entering the equipment

2. Equipment stepless speed regulation, wide range of particle size adjustable

3. Adopt the handle imported from Japan to adjust the turntable, with high accuracy

4. The equipment is stable in operation, and the particle size is uniform when the material is crushed

5. The equipment can effectively prevent material accumulation and bridge erection

6. Chamber water cooling, conducive to material cooling

7. Special material grinding disc, corrosion resistance, wear resistance, long life

8. The equipment can take up less space according to customer requirements
