Sphericalization

Introduction:	Fine grading shaping machine - spherical operation flow chart is as follows
Application:	Chemicals, food, medicinal, electronic, electrical, other
Material:	Powder material, granular material

Details
Application
Parameter
Characteristic

Patent number：ZL 2014 2 0752566.5

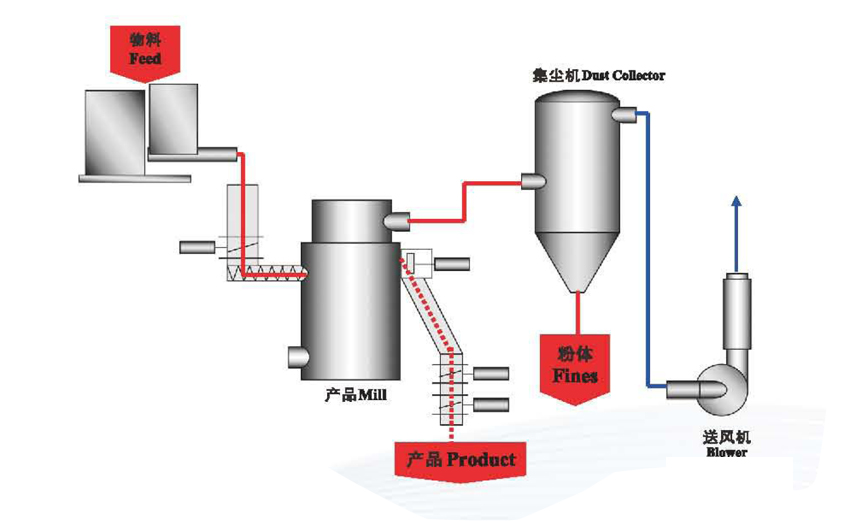

Fine grading shaping machine - spherical operation flow chart


【 Electronic · Electrical 】

The bulk density is improved by spherification of secondary battery materials

【 Information 】

Spherification and mincing of toner

【 Food 】

Component separation (starch removal, stain removal powder)

【 Chemistry 】

Removal of fibrous material from resin powder

【 Recycle 】

The removal of unburned carbon in dry powder, the recycling of useful substances in copier substrate, and the separation of components of building waste materials

specification		unit	F- 400
type		(一)	1
power	Dispersion department	(kW)	30
	Grading department	(kW)	7.5
Grading wheel	CR-		260
	Number of units	(一)	1
Maximum speed	Dispersion department	(rpm)	5900
	Grading department	(rpm)	6000
Air volume	Export	(m³/min)	15
Processing capacity		(kg/h)	85
Machine size	W	(mm)	2200
	L	(mm)	1900
	H	(mm)	2300
Machine weight		(kg)	2500

Characteristic

1) Spherification, surface treatment and other particle shape design machine, can be continuous production;

2) Very small equipment, there is a lot of capacity;

3) The treatment effect can be optimized by simply adjusting the speed;

4) 24-hour continuous production, stable batch production;

5) No high temperature, low melting point of raw materials can also be processed

6) Only the surface is treated without affecting the particle size, and the existing equipment can be modified and added.
