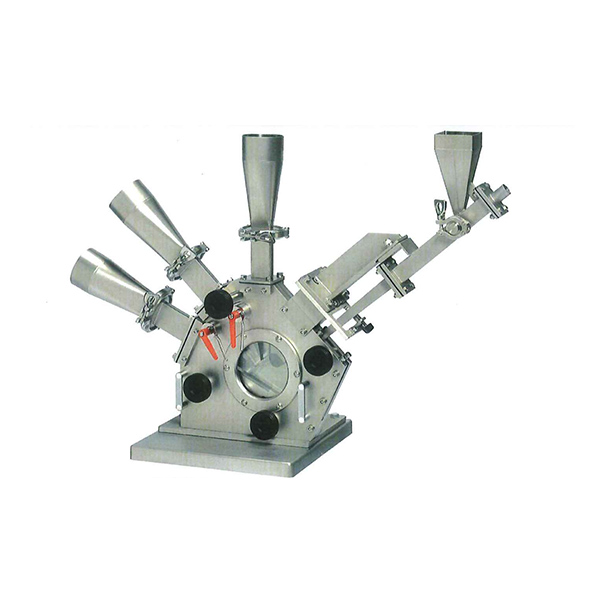

High precision air classifier

Introduction:	Coanda Effect can be used to complete the air classifier of coarse powder, medium powder and fine powder in one time
Application:	Lithium battery anode materials graphite, silicon, copier toner, chemical materials
Material:	Powder material, granular material

(Coanda Effect)

Air classifier that can complete the classification of coarse powder, medium powder and micro powder at one time

What is the Conda effect?

When a fluid flows over a surface,

The phenomenon of flowing against a surface contour.

If the surface of the object is curved and smooth,

It creates on the surface of the object

They are attracted to each other and flow against the surface.

Many negative material manufacturers feedback, sub-micron and 15um

Mixing raw materials together can adversely affect battery performance.

If you use this device, you can perform grading at one time!

Grading range : 3μm～200μm

Processing capacity : 1kg～3000kg/hr

Application

Lithium battery anode material graphite silicon

Chemical materials for toner of photocopier

Characteristic

Using a simple structure, you need no drive and it's easy to maintain

Use a highly dispersed atomizer to achieve sharp separation

Application: High precision classification, high wear-resistant materials, explosive materials, etc

Closed-circuit operation using noble gases is easy
