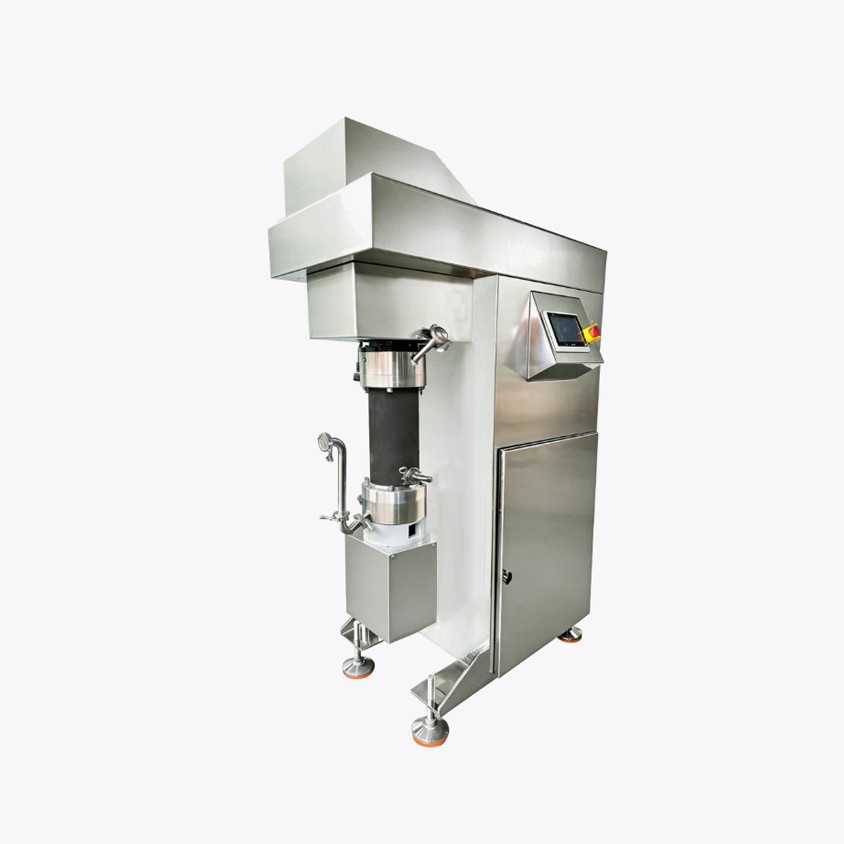

Vertical Dual-Power Bead Mill Series

Introduction:	Dual independent-drive vertical sand mill with separate motors for the rotor and separator for precise, flexible control.
Application:
Material:	New energy: lithium electrode slurry, separator coating, conductive slurry, energy-storage slurry, battery binder Coatings & inks: industrial coatings, water/oil-based coatings, nano color paste, UV ink, digital ink, automotive coatings New materials: nano ceramic slurry, ceramic powder, graphene/CNT dispersion, nano metal oxides, functional nanocomposites

Details
Application
Parameter
Characteristic

Equipped with two independent drive systems, the separator wheel and the rotor each have their own motor and shaft, the vertical dual-power sand mill sets the optimal working speed for grinding and separation based on material characteristics, enabling precise, flexible control and highly efficient forced circulation.

Model	30L	60L	150L
Motor Power (kW)	45	90	160
Grinding Chamber Volume (L)	30	60	150
Min. Production Volume (L)	70	150	350
Dispersed Shaft Speed (r/min)	1200	700	570
Cooling Water Consumption (m³/h)	6	12	20
Weight (kg)	2200	4500	7500
