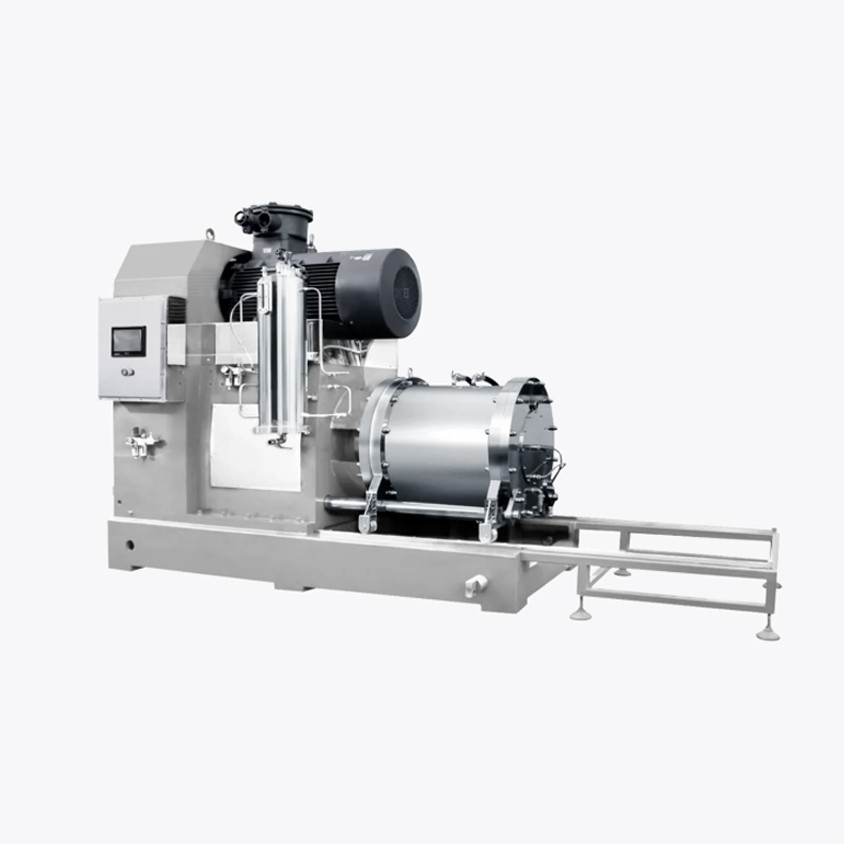

Coating Slurry Bead Mill Series

Introduction:	Pin-rod sand mills purpose-built for battery separator and electrode coating slurries.
Application:
Material:	Battery separator coating slurry Electrode coating slurry Conductive paste

Details
Application
Parameter
Characteristic

A pin-rod sand mill series configured for coating slurry applications, delivering narrow particle distribution, high efficiency and ultra-low energy consumption for battery separator and electrode coating materials.

Model	NCP-30	NCP-60	NCP-150
Motor Power (kW)	45	90	132-160
Grinding Chamber Volume (L)	30	60	150
Grinding Media (mm)	0.2-2.0	0.2-2.0	0.2-2.0
Feed Flow (L/h)	1200	3000	4000
Weight (kg)	2800	4500	6500
