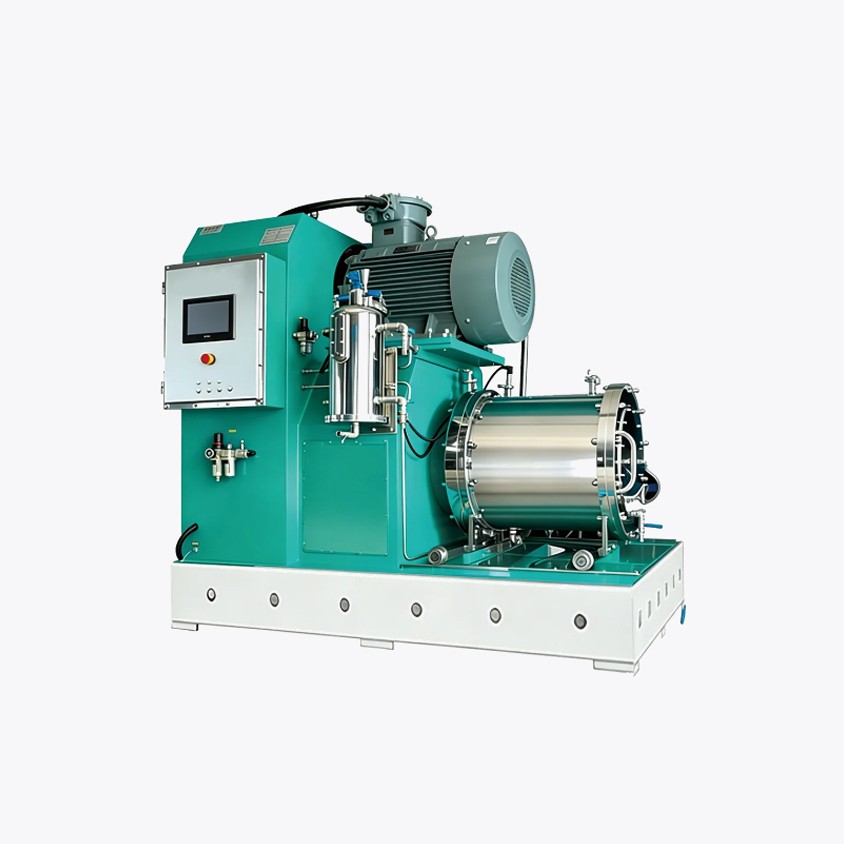

NCT Turbine Bead Mill Series

Introduction:	Turbine-rotor ceramic sand mills for high-energy nano dispersion, narrow particle distribution and ultra-low energy consumption.
Application:
Material:	Carbon nanotubes Nano ceramics Inkjet printing Barium titanate Alumina Zirconia Barium carbonate Varistors Catalysts

Details
Application
Parameter
Characteristic

The NCT series uses an optimized turbine disperser to transfer maximum kinetic energy to the grinding media inside the chamber, delivering narrow particle-size distribution, high efficiency and ultra-low energy consumption for new nano-materials and electrode materials.

Model	NCT-90	NCT-150	NCT-400
Motor Power (kW)	90	132	315
Grinding Chamber Volume (L)	90	150	400
Min. Production Volume (L)	150	300	800
Cooling Water Consumption (m³/h)	3-6	5-8	20-25
Dispersed Shaft Speed (r/min)	0-750	0-700	0-400
Weight (kg)	4500	6500	7000
