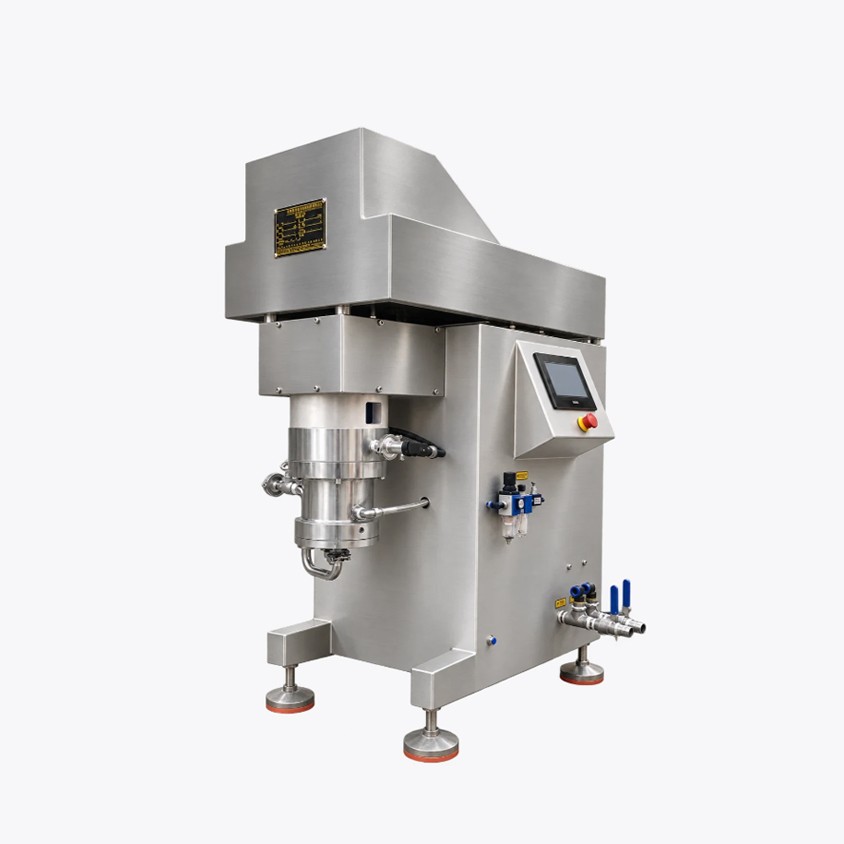

Experimental Vertical Bead Mill

Introduction:	Vertical screen-free lab mill for ultra-fine grinding verification down to 0.03 mm zirconia beads.
Application:
Material:	Nanomaterials Sodium materials Silicon-carbon anode Lithium iron phosphate Ink Alumina Zirconia Silica ATO / ITO Graphene

Details
Application
Parameter
Characteristic

A screen-free vertical sand mill designed for reliable use of 0.03 mm micro-media, delivering ultra-fine grinding verification with a narrow particle-size distribution and no clogging.

Model	LPM-1	LPM-6	LPM-15	LPM-30
Motor Power(kW)	7.5	15	22	45
Grinding Chamber Volume(L)	1	6	15	30
Grinding Media(mm)	0.05-2.0	0.05-2.0	0.05-2.0	0.05-2.0
Feed Flow(L/h)	150	400	1200	1500
Cooling Water Consumption(m³/h)	0.6	1.5	2	2.5
Weight(kg)	380	1300	2100	2200
