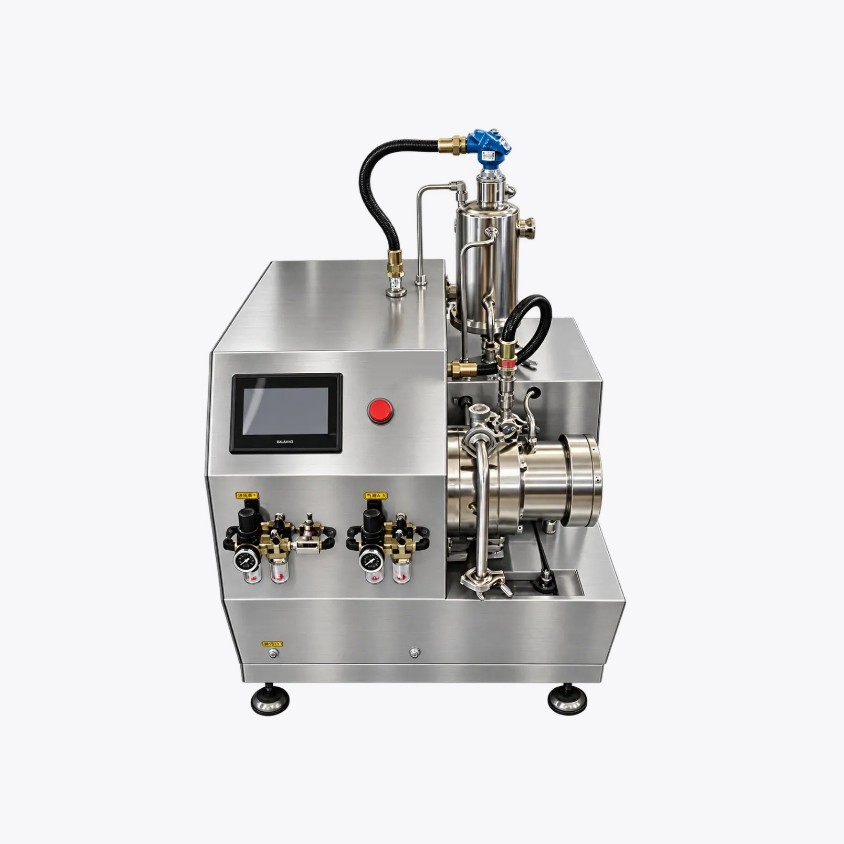

Experimental Horizontal Bead Mill

Introduction:	Compact horizontal sand mill for extremely small batches and rapid nano wet-grinding trials in the laboratory.
Application:
Material:	silicon carbide / polyurethane / zirconia / alumina

Details
Application
Parameter
Characteristic

Engineered for early-stage R&D, this horizontal sand mill pairs an ultra-compact grinding chamber with a high-performance turbine/pin disperser for fast, repeatable nano-scale wet grinding with a narrow particle-size distribution.

Model	NCT-0.3	NCT-1	NCT-3	NCT-5	NCT-30
‌Motor Power (kW)‌	2.2	5.5	7.5	11	45
‌Grinding Chamber Volume (L)‌	0.3	1	3	5	30
‌Min. Production Volume (L)‌	0.5	2	5	1-2	100
‌Cooling Water Consumption (m³/h)‌	0.5	0.6	1-1.5	8	4
‌Dispersed Shaft Speed (r/min)‌	0-2800	0-2800	0-2600	0-1400	0-1400
‌Weight (kg)‌	90	320	600	900	2150
